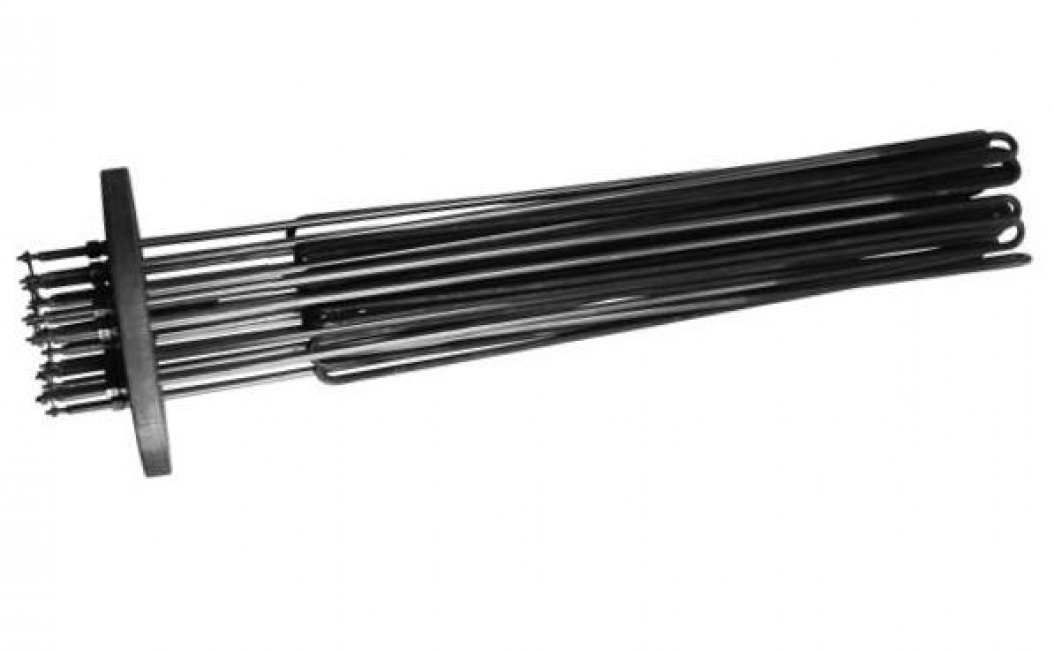

Replacement Boiler Heaters With Round Flanges

Images are for illustrative purposes only

Item #	Flange Type	Power	Standard Voltage	Weight
FLIB9218100X10	6" - 150 lb. Flange - Boilers	100 kW	208 V, 240 V, 416 V, 480 V, 600 V	33 kg 73 lb
FLIB9236180X12	8" - 150 lb. Flange - Boilers	180 kW	208 V, 240 V, 416 V, 480 V, 600 V	48 kg 106 lb
FLIB9237180X12	8" - 150 lb. Flange - Boilers	180 kW	208 V, 240 V, 416 V, 480 V, 600 V	48 kg 106 lb
FLIB9120108X10	6" Special Flange - Boilers	108 kW	208 V, 240 V, 416 V, 480 V, 600 V	30 kg 66 lb
FLIB9236108X12	8" - 150 lb. Flange - Boilers	108 kW	208 V, 240 V, 416 V, 480 V, 600 V	42 kg 92 lb
FLIB9236216X12	8" - 150 lb. Flange - Boilers	216 kW	208 V, 240 V, 416 V, 480 V, 600 V	51 kg 112 lb
FLIB9120112X10	6" Special Flange - Boilers	112.5 kW	208 V, 240 V, 416 V, 480 V, 600 V	30 kg 66 lb
FLIB9236116X10	6" - 300 lb. Flange - Boilers	116.7 kW	208 V, 240 V, 416 V, 480 V, 600 V	30 kg 60 lb
FLIB9236225X12	8" - 150 lb. Flange - Boilers	225 kW	208 V, 240 V, 416 V, 480 V, 600 V	54 kg 119 lb
FLIB9120125X10	6" Special Flange - Boilers	125 kW	208 V, 240 V, 416 V, 480 V, 600 V	32 kg 70 lb
FLIB9120135X10	6" Special Flange - Boilers	135 kW	208 V, 240 V, 416 V, 480 V, 600 V	32 kg 70 lb
FLIB9218135X10	6" - 150 lb. Flange - Boilers	135 kW	208 V, 240 V, 416 V, 480 V, 600 V	33 kg 73 lb
FLIB9236135X12	8" - 150 lb. Flange - Boilers	135 kW	208 V, 240 V, 416 V, 480 V, 600 V	45 kg 99 lb
FLIB9236270X12	8" - 150 lb. Flange - Boilers	270 kW	208 V, 240 V, 416 V, 480 V, 600 V	63 kg 139 lb
FLIB9116415X10	6" Special Flange - Boilers	15 kW	208 V, 240 V, 416 V, 480 V, 600 V	14 kg 31 lb
FLIB9116815X10	6" Special Flange - Boilers	15 kW	208 V, 240 V, 416 V, 480 V, 600 V	14 kg 31 lb
FLIB9118230X10	6" Special Flange - Boilers	14 kW	208 V, 240 V, 416 V, 480 V, 600 V	18 kg 40 lb
FLIB9236144X12	8" - 150 lb. Flange - Boilers	144 kW	208 V, 240 V, 416 V, 480 V, 600 V	45 kg 99 lb
FLIB9120145X10	6" Special Flange - Boilers	145 kW	208 V, 240 V, 416 V, 480 V, 600 V	32 kg 70 lb
FLIB9116415X10	6" Special Flange - Boilers	15 kW	208 V, 240 V, 416 V, 480 V, 600 V	14 kg 31 lb
