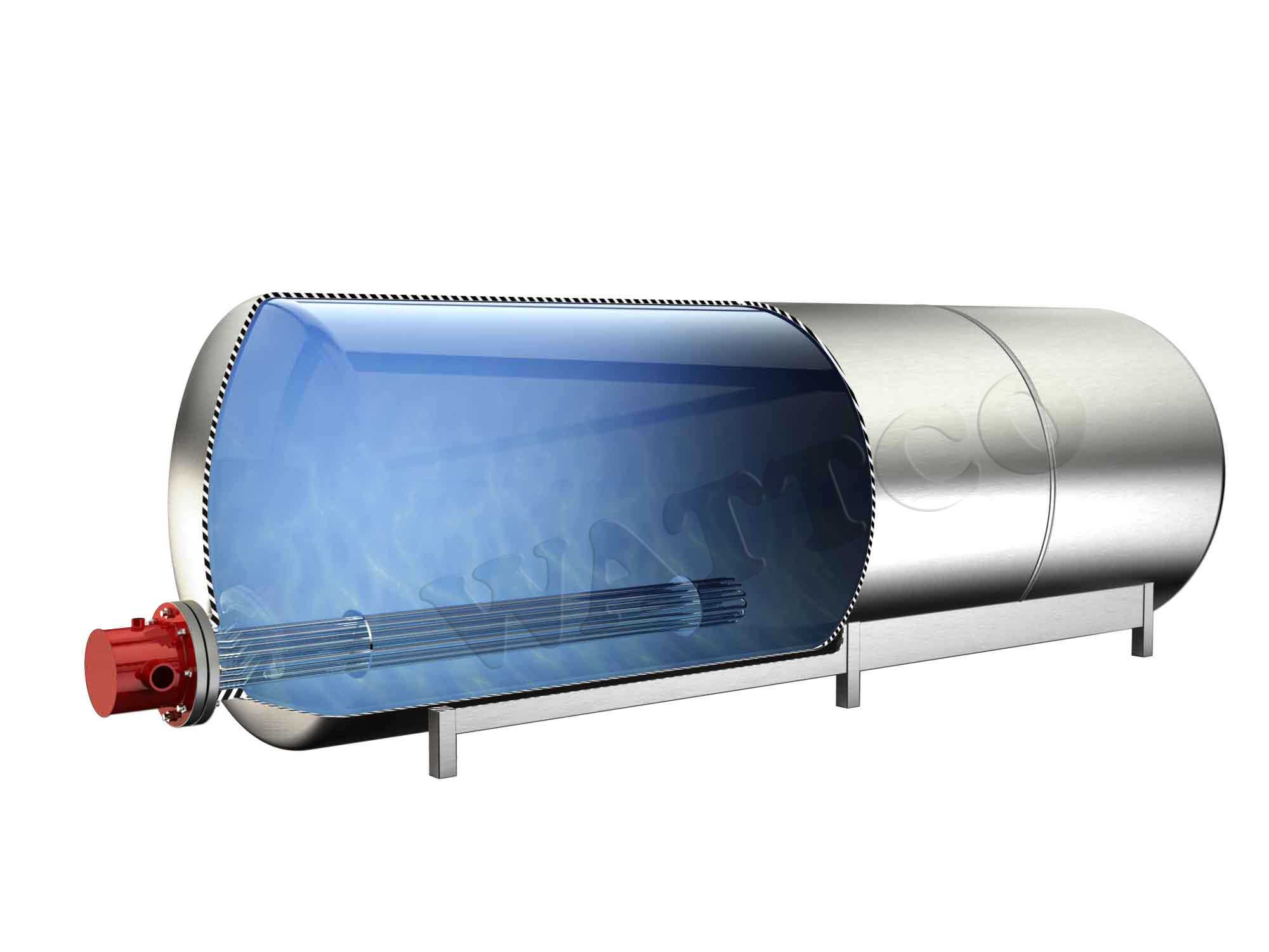

Screw Plug heaters from WATTCO™ consist of hairpin tubular elements that are brazed or welded into a machined pipe thread fitting, (normally an NPT fitting for North American standards) which are then screwed directly through a threaded coupling in the tank wall or vessel, or installed in pipe. Screw plug heaters are an easy way to heat up solutions in smaller containers that also require controls. Mechanical thermostats or Digital controllers can be used with these immersion heaters to help reach target temperatures with great accuracy meeting your project objectives. Additional thermowells can be installed for high limit temperature probes to help protect your liquid and processes.



Screw Plug heaters from WATTCO™ are used for heating gases and liquids in tanks or vessels. These elements are designed to be immersed in liquid so that heat transfer will occur at a rapid rate, enabling quick heat up times. Typical uses include the food and beverage industry, laboratory clinics, applications involving hydraulic oils and lubricants as well as more sophisticated uses such as heating up flammable liquids or gases which require explosion proof housing.

Circulation Heaters also known as "in line heaters" use steel, stainless steel, titanium flanged immersion heaters in many applications. Lube oil and waste oil applications often use steel for circulation heaters as it is fairly inexpensive compared to stainless steel counterpart. In line heaters flowing water use stainless steel, admired for its anti corrosive qualities. Both applications involve using a pump that flows the liquid through a closed pipe circuit (IE. water or glycol solution) that is reheated. A major consideration for this application is viscosity. Heat that is generated by the oil heater allows the liquid to be viscous enough to pass through the circuit of pipes. Circulation heaters come in a range of watt densities that are specifically designed for the medium that is heated. The required wattage to heat the oil or water is highly correlated to the flow rate (in GPM). The oil or water enters through an inlet (the inlet closest to the flange heater) and gets heat applied to it as it flows within a vessel chamber and exits the outlet nozzle (or flange) where it circulates throughout the piping circuit. Insulation is often required for vessels in order to preserve the heat to be applied within the vessel. Efficient heat application can often reduce unnecessary costs through heat loss. Digital thermocouple probes or RTDs, can be  used with the electric immersion heater to maintain the oil or water at the preferred temperature. Many applications use liquids with low flash point and, require explosion proof housing (NEMA 7) to avoid potential mishaps.

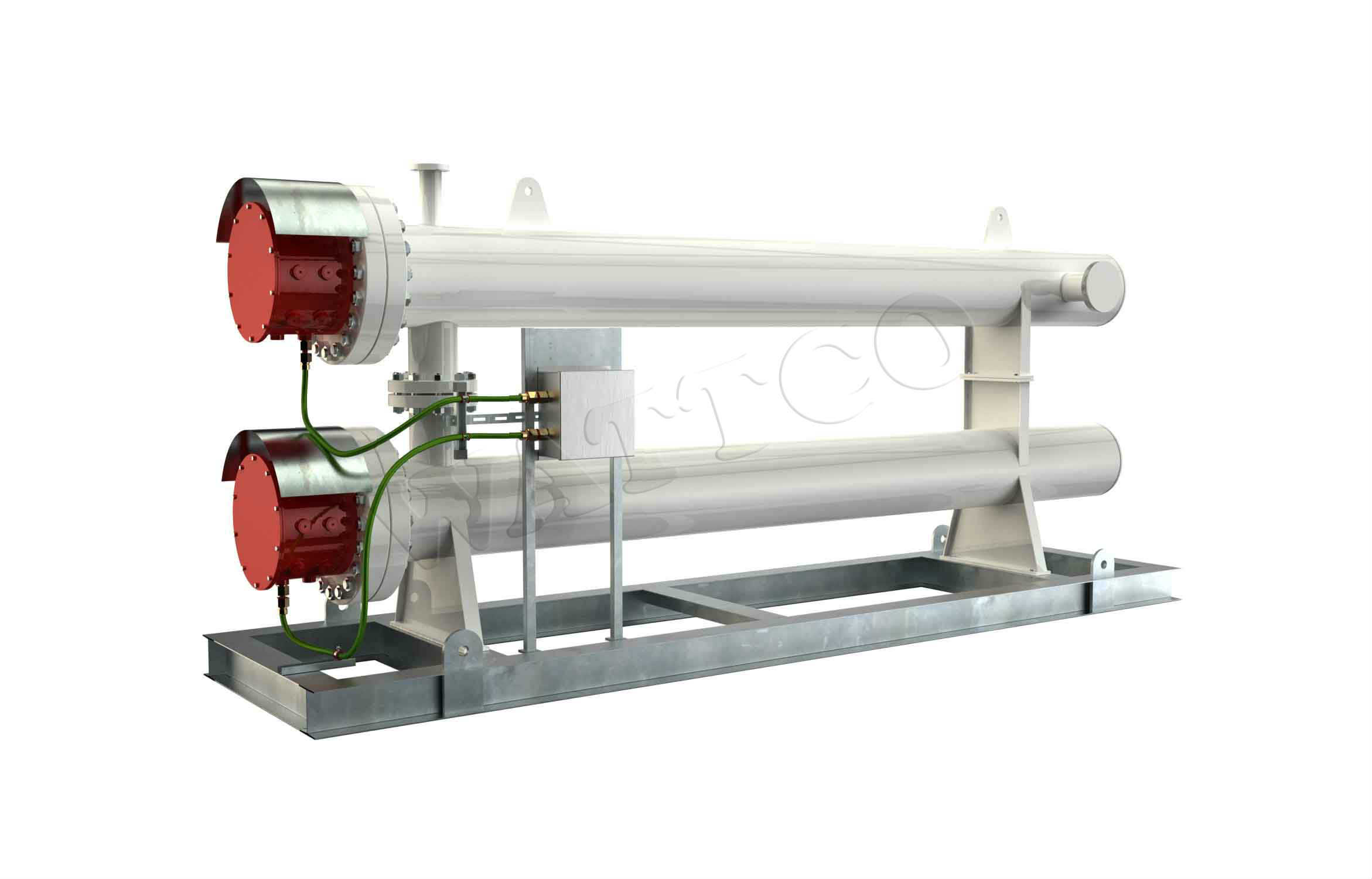

Other useful features found with circulation heaters are drain valves.  They can be installed in any location on the vessel and allow for easy maintenance of the heater. The water or oil can be purged through the drain valve allowing for maintenance on the elements. Calcium deposits and other residue can be found on elements and should be cleaned several times a month. Inline heaters also come with the choice of horizontal or vertical mounting depending on your application. Skid mounted vessels are used in oil heating industries that require mobility. Wattco heaters are also available in moisture resistant terminal boxes or explosion proof terminal boxes for hazardous environments. Wattco in line heaters are an exceptional choice for heating process liquids, non corrosive to the materials of construction. In line gas heaters are also used when heating closed loop systems that require high temperatures of up to 1000 deg F. These applications use large flanged vessels that contain the gas and heat it up in containment most efficiently requiring low maintenance and excellent heat transfer.

Over the Side Heaters are a popular product for economic and practical uses. Using a water-resistant terminal housing, these industrial heaters come in many shapes and sizes to fit within your tank dimensions and specifications. Wattco over the side heaters are custom designed with multiple tubular elements and a thermowell to hold your temperature probe. Shaped to fit within your standard (or non-standard tank) the economic feasibility meet the budget of any project manager. These mobility of these heaters to be able to be used in more than one container allow it to be the choice of many project managers. Wattco uses high quality stainless steel and other exotic alloys to meet the requirements of any application. Together with a digitral controller, this heater becomes the perfect solution to heating large containers with no access to the liquid except from the top. Brackets are used to support the heater onto the wall of the tank and cold sections are carefully calculated to prevent over heating when water or liquid levels drop below certain levels as a result of evaporation or drainage. Using high quality alloys, Wattco over the side heaters are strong enough to physically withstand many harsh environments both indoors and outdoors. Commonly used in petroleum and chemical industries it is an exceptional choice for projects with limited budgets
