WATTCO™ Pipe Heaters are especially constructed to fit inside standard 2 or 3” schedule 40 NPS pipes. Specifically designed to fit in tank applications that require extremely low watt densities such as waxes, thick liquids such as tar, molases and corrosive mediums. Wattco pipe heaters do not come in contact with the liquid medium. Rather the indirect heating from element to pipe is used to heat liquid sources. This provides easy maintenance as the tank does not need to be emptied out if heater needs to be replaced.

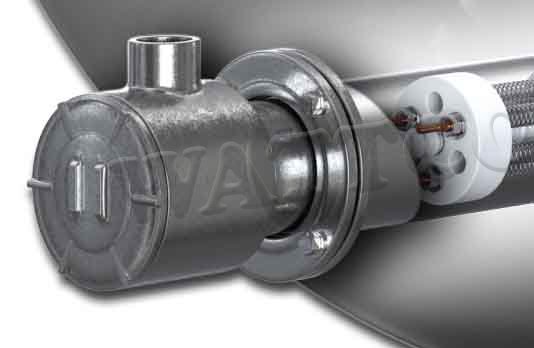

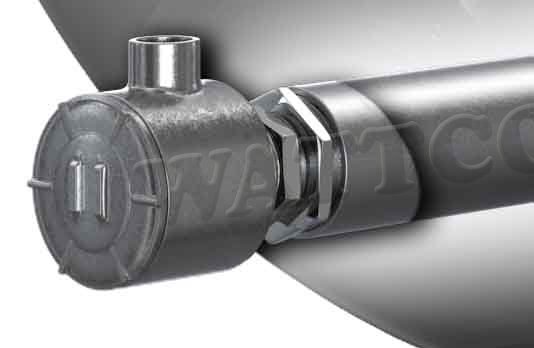

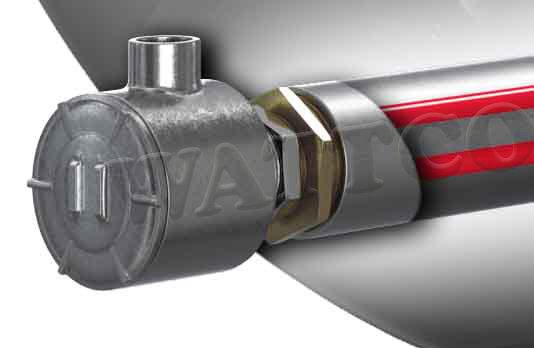

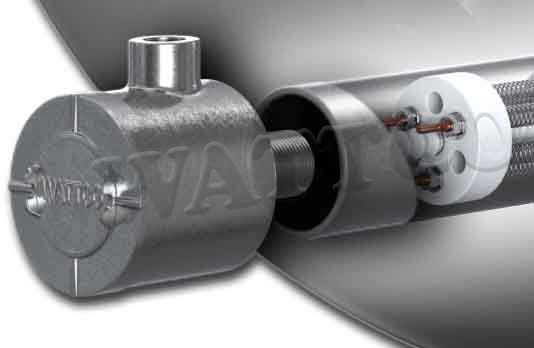

Designed to withstand high heat environments, Wattco pipe heaters are an excellent choice to use with heavy bunker fuel oils, corrosive liquids and liquids with high viscosity. Wattco pipe heaters can use flanged heaters, screw plug heaters as well as resistance coil heaters (open coil heaters).

Pipe heaters use supportive ceramics resistant to high thermal heat that provide mechanical support to coils. Thermocouples can also be used to relay temperature readings to a digital controller that helps regulate the heat intensity. Steel pipes can be used for their thermal transfer properties and their corrosion resistant properties to many pertrochemical solutions.  Open coils are the most efficient type of electric heating while at the same time being the most economically feasible for most heating applications.
