Duct Heaters

Duct Heaters

Wattco's duct heaters come in various sizes and dimensions to fit any compartment. There are three types of duct heaters available: open coil, tubular or finned tubular heating elements that are either flanged or inserted in the duct.  Air duct heaters are primarily used in air flowing ventilation systems and comfort heating applications while process duct heaters are mainly used for industrial process heating applications (ovens that require re-circulated air or forced circulation).


Wattco designs and configures your electric duct heaters according to your specifications. Our team is dedicated to research and development of the latest technologies, while striving to meet every customer’s needs by manufacturing high quality duct heaters. Since 1969, WATTCO has expertise in developing and manufacturing electric duct heaters that make Wattco duct heaters, the most easily adaptable solutions for most non-pressurized, air-heating systems.

A broad range of custom built electric duct heaters with capacities up to 1000kW is available upon request. WATTCO™ heaters can be used for applications with the following voltages:

• 347 volts/1 phase

• 600 volts/1 phase

• 600 volts/3 phases

• 208/240 volts/1 phase

• 208 volts/3 phases

WATTCO™ duct heaters have the international, American recognized, Canadian Standards Association (CSA us) label, which set the standards for the electric heating industry. Duct heater can include proper built-in safety devices to extend the service life of the heater.

WATTCO™ also manufactures heaters for industrial processes, original equipment manufacturers (OEM) or any other special applications.

TERMINAL HOUSINGS

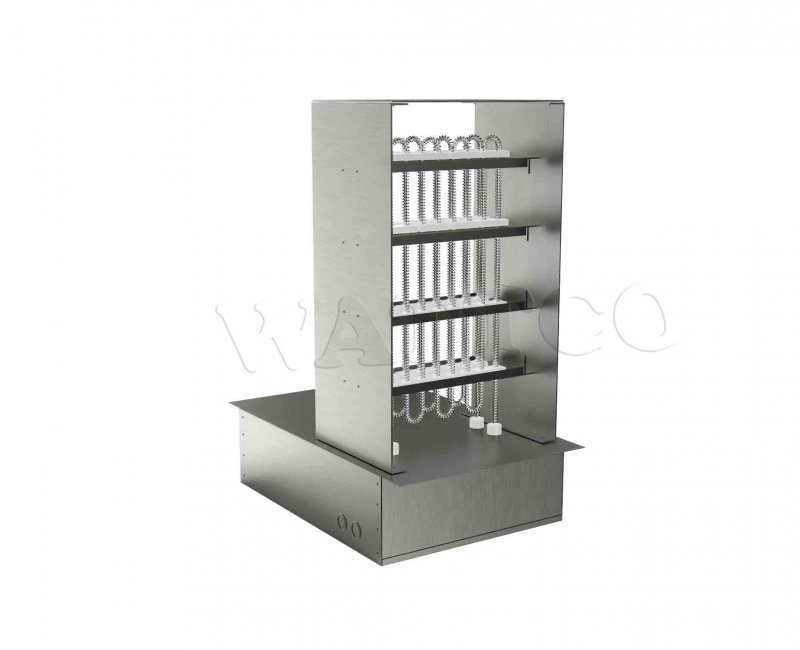

Coiled duct heater
Coiled duct heater

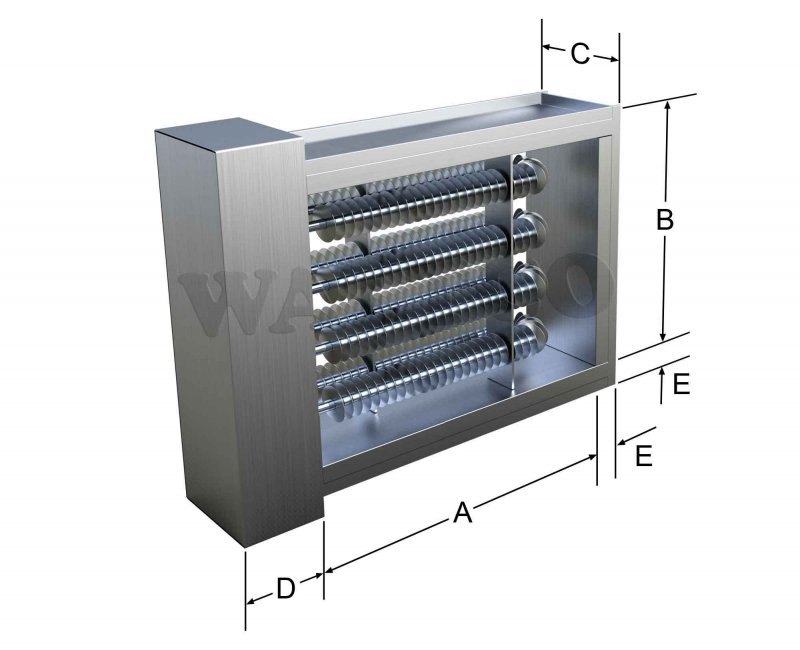

duct heater finned
duct heater finned

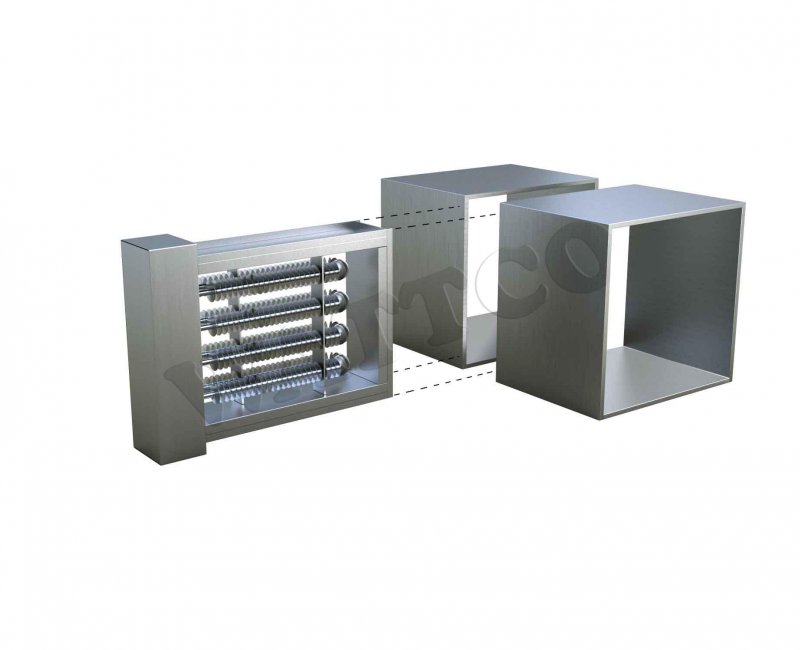

Duct Heater Slip into Duct
Duct Heater Slip into Duct
Tubular duct heater
X section tubular duct heater

Finned tubular elements

Unfinned Tubular elements

Finned Tubular Elements vs. Unfinned tubular elements
The most common design Available for approved special orders only
Include the highest wattage/cross section duct area
  • Increase corrosion resistance
  • High humidity environments
  • Corrosive chemical contaminants in the air stream
Energy saver Protect from electrical shock
Made of a steel tube with a corrugated steel fin wrapped around it and brazed together

Made of steel or stainless steel tube

Maximize the heat transfer surface of the element Can be installed close to a register or grill
Provide lower operating temperature N/A
Designed for low maintenance Designed for low maintenance



APPLICATIONS

• Heat treating
• Forced air comfort heating
• Booster air heater
• Air drying operations
• Core drying
• Air pre-heating
• Air handling equipment
• Fan coils
• Terminal reheating
• Multizone reheating
• Heat pump auxiliary systems
• Return air heating
• Resistor load banks
• Annealing

KEY FEATURES BENEFITS
• 16-gauge satin coat steel;
• Exclusive modular construction with stock
   frame components used with 2” vertical
   and horizontal dimensional increments
   for faster delivery;
• Single and three-phase tensions;
• Stainless steel supports;
• Field replaceable heating elements, if required;
• ¼” (6 mm) inside diameter thermophile;
• 3 ½ ” (90 mm) thick insulation;
• General purpose terminal enclosure;
• Primary linear cutout:
    o 160ºF (71ºC)
    o 277/600 VAC
    o 25/10 AMP non-inductive
• Secondary linear cutout:
    o Manual reset with back-up magnetic contactor on units of 300V, 30 kW and less.
    o 225ºF (107ºC)
    o 277/600 VAC
    o 25/10 AMP non-inductive
• Special sizes, wattages, and materials available upon request;
• Built stainless steel frames available upon request;
• American and Canadian Standards Associations (CSA, CSA us & UL) certified.
• Versatile
• Corrosion and oxidation resistant
• Easy to maintain
• Easy to install
• Durable
• Compatible with local power supplies
• Built for safety
• Maximal dielectric strength and heat transfer
• Minimal heat loss
• Maintained wiring cooler
• Clean heat
• Easy service
• Minimal downtime
