Flanged heaters are commonly used in many chemical, petroleum and water based applications. Consisting normally of an ANSI rated flange with several hairpin elements or bugle tubular elements extending from the face of the flange, this electric heater uses direct heat application to the liquid medium. A thermowell is often used within the bundle of elements to allow for a probe (either a thermocouple, RTD or basic mechanical thermostat) to relay temperature readings to a digital control panel that cycles and maintains the desired target temperature. Often a high limit sensor is also used to help protect liquid mediums from over heating and, offers protection to the flange heater as well. Several Flange Heaters Immersed in a Tank


Wattco uses its decades of experience shipping our industrial heaters worldwide. When shipping across borders, Wattco can handle all necessary import, customs and duties responsibilities to ensure that you receive your product on time and on spec. Wattco ships using all mediums upon request including: truck, train, container ship and by air freight when mission critical rush delivery is required.

Flanged Heater Uses

Wattco flanged heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flanged heating element Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating. Steel flanges can also be found in immersion heaters for water tanks. These flanged heaters are used to process soap and detergent solutions as well as demineralized or deionized water. Stainless steel flanged heaters are used with mildly corrosive solutions as well as severe corrosive solutions. Food applications also use stainless steel for sanitary purposes. The sheath materials used in a flanged heater can be steel, stainless steel, copper as well as exotic alloys such as inconel, hastalloy and titanium. Extremely corrosive environments such as salt water should use exotic alloys such as titanium to avoid sheath breach over excessive durations. Industries that use exotic alloys can include military, chemical and process industries. Flanged heaters use bent tubular elements that are brazed or welded onto a flange. Extra wiring boxes in which the electrical connections are fixed are provided with it. Some heaters have already been prefixed into flanges, but others can be welded on matching flanges that are mounted on a nozzle or tank wall. Wattco offers flanged heaters in varying kilowatts ratings, voltages, temperature ranges, sheath materials and so on. Flanged immersion heaters are one of the most widely used industrial heater options in the oil sector. Compared to other oil heaters, they are easier to install, are specifically designed for use in pressurized vessels and more manageable. Typical applications include preheating different grades of oil, cleaning tanks and heat transfer. Click here to get a quote on a flanged heater today or feel free to contact one of our experts for more information.


At Wattco, we have a dedicated team of experts ready to provide you with the answers and assistance you need. Whether you're a seasoned professional looking for technical specifications or in maintenance inquiring about our products, our team of knowledgeable professionals is here to help.

  • Options
  • Flange Sizes


  • Flange Rating

    150 LBS, 300 LBS or 600 LBS ANSI Non Standard Flanges also available

  • Elements

    Steel Stainless Steel Copper Titanium Incoloy Inconel

  • Control

    Thermostatically controlled (0-255F), (55-550F) Digitally Controlled Thermocouple RTD

  • Terminal Box Housing

    NEMA 1 Standard Terminal Box NEMA 4/4X Water Proof Terminal Box NEMA 7 Explosion Proof Terminal Box

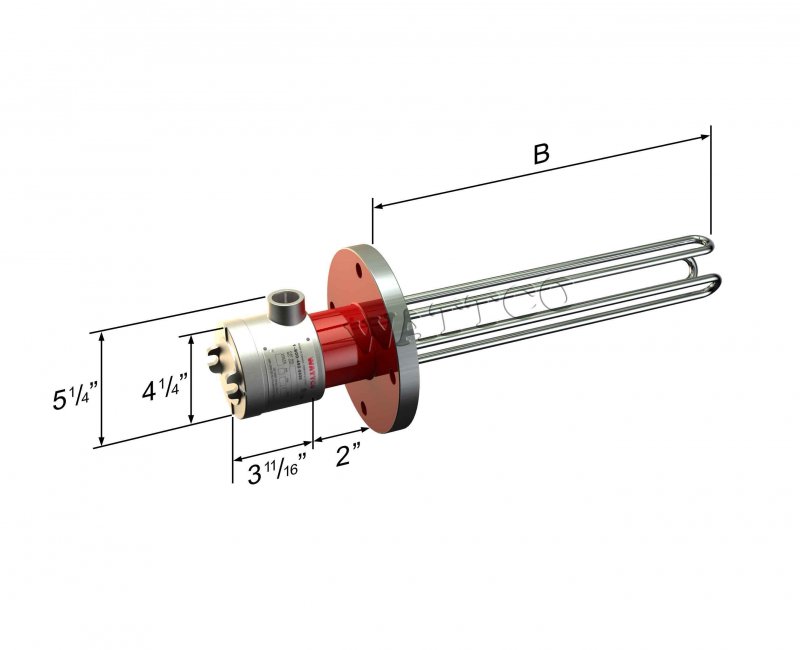

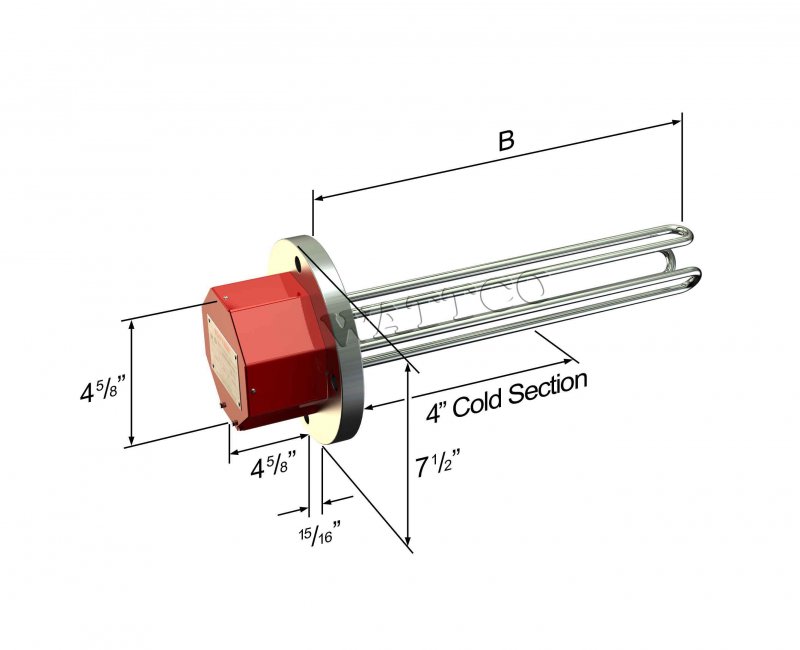

3 inch ANSI flanged heater NEMA 1

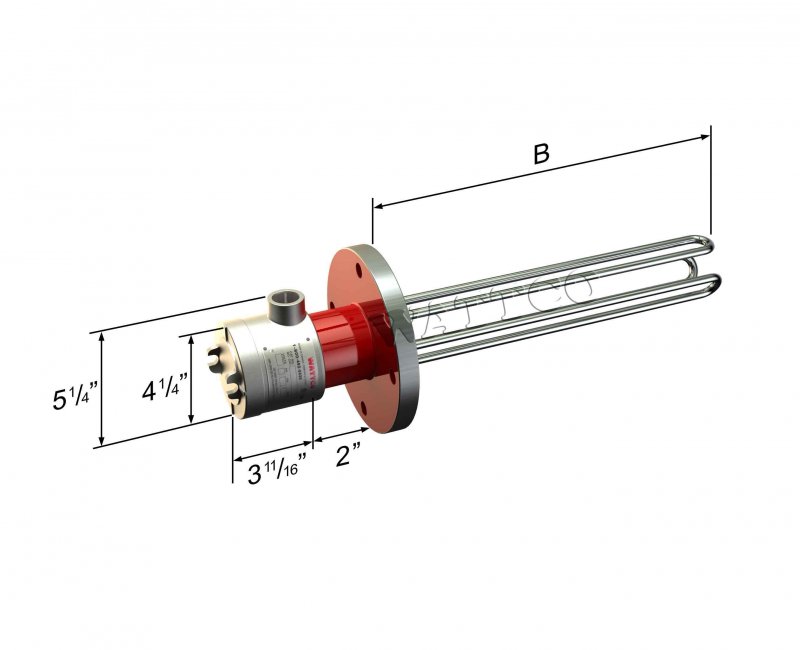

3 inch ANSI flanged heater NEMA 4

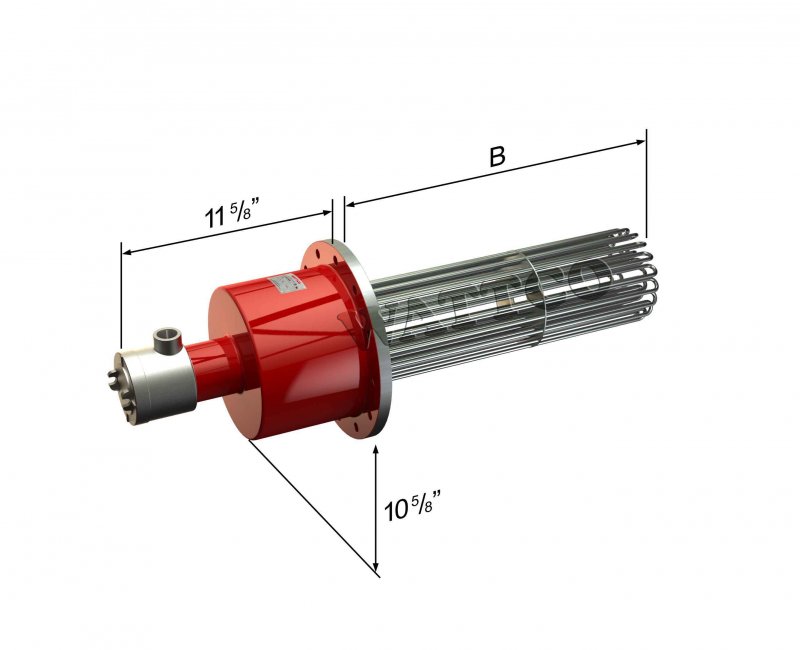

3 inch ANSI flanged heater NEMA 7

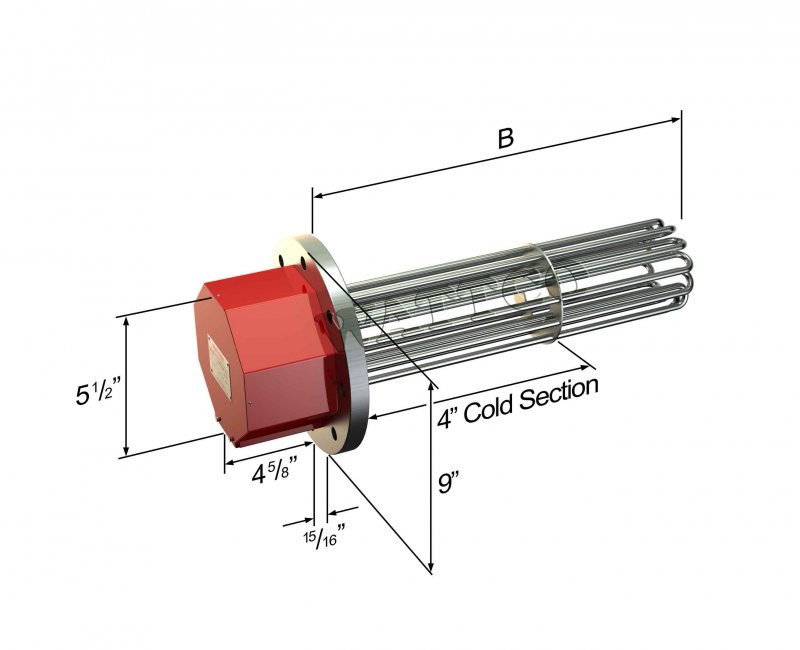

4 inch ANSI flanged heater NEMA 1
4 inch ANSI flanged heater NEMA 4

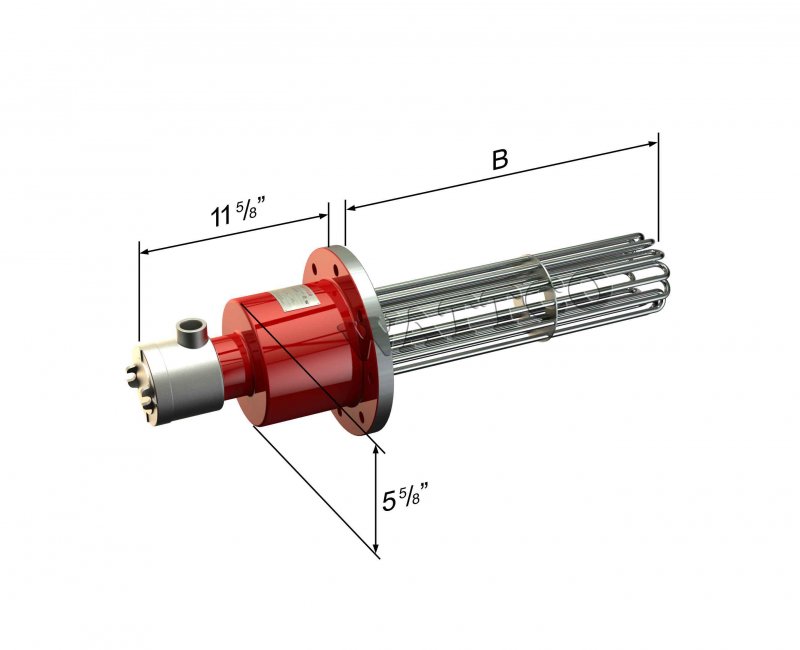

4 inch ANSI flanged NEMA 7

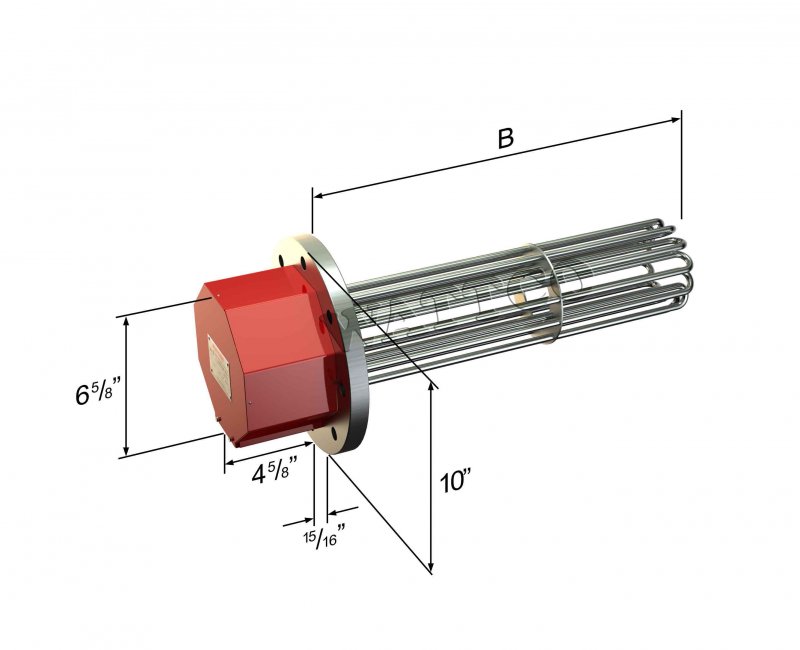

5 inch ANSI flanged heater NEMA 1

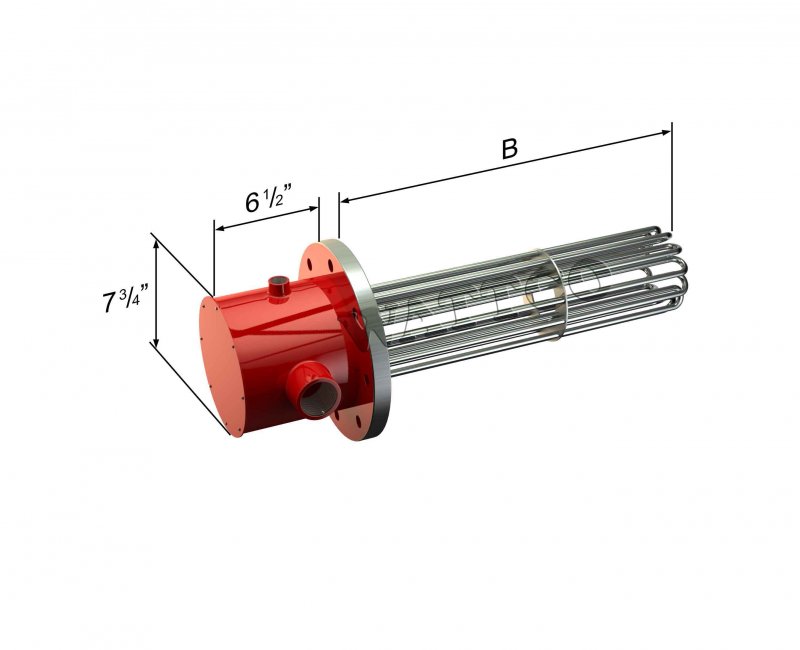

5 inch ANSI flanged heater NEMA 4
5 inch ANSI flanged NEMA 7

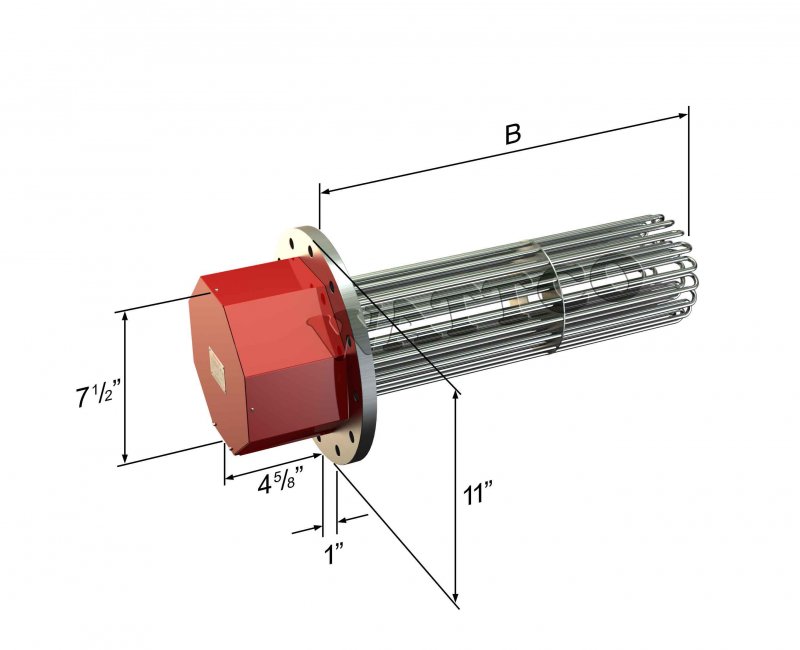

6 inch ANSI flanged heater NEMA 1
6 inch ANSI flanged heater NEMA 4
6 inch ANSI flanged NEMA 7
8 inch ANSI flanged heater NEMA 1

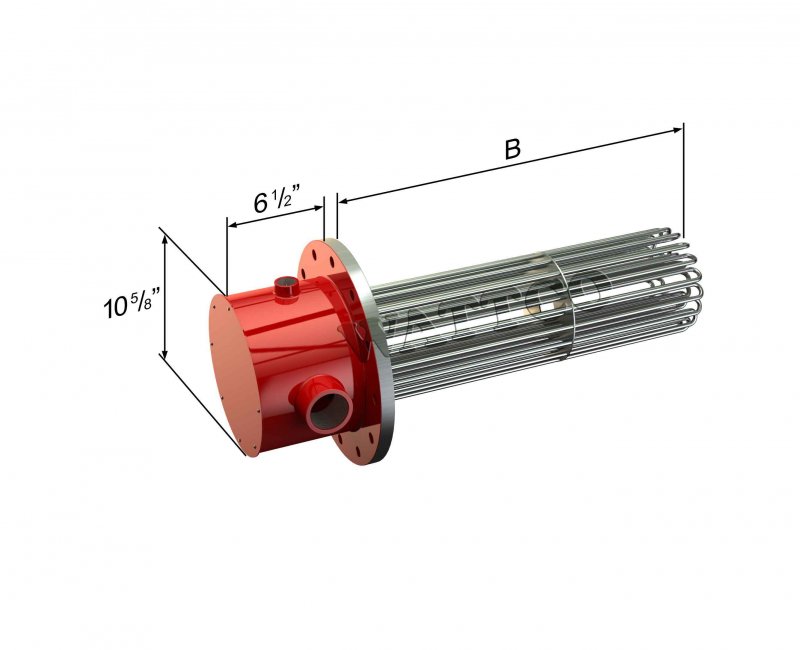

8 inch ANSI flanged heater NEMA 4
8 inch ANSI flanged NEMA 7




WATTCO™ flange heaters are custom-built and supplied with voltages up to 600V.


Custom made heaters can be supplied with any requested wattage.


WATTCO™ flange heaters are supplied with unlimited immersed lengths.

When the immersed length exceeds 50”, it is recommended to install an internal vessel support.


Heavy wall sheath (0.035” or 0.065” thickness) is provided in:

  • Incoloy®
  • Inconel®
  • Steel
  • Stainless steel


Refer to the Welding flanges section on page 2.12 and 2.13


Available Incoloy® and stainless steel sheathed heaters can also be supplied with chemically passivated sheaths.

Note: Chemically passivated sheaths are highly corrosion resistant in most applications.

Passivation process is carried out through electropolishing.

WATTCO™ stainless steel flange heaters can come with passivated wetted surfaces.


WATTCO™ standard flange heaters are made of elements that are ‘TIG’ or welded to the flange. Heaters are supplied with welded elements for the following sheath material:

  • Incoloy®
  • Stainless steel
  • Steel
  • Copper
  • Titanium


Built-in thermostat wells can be installed upon request.

When ordering, please provide length and internal diameter.



For process temperature control, built-in high limits and thermostats can be installed upon request.

Standard built-in thermostats: Single pole device of a maximum of 600V up to 25 amps


Thermocouples can be mounted to provide sheath limit protection or temperature control.

Configured temperature control and power controls are available to meet the requirements of any application.


Vented or Stand off housings prevent the connection wire from overheating in many high temperature applications.


Special terminal housings for all types of flange heaters can be made:

  • Moisture resistant
  • Explosion resistant

When requesting an explosion-proof housing, please provide:

  • Class
  • Division or zone
  • Group
  • Temperature code for unsafe locations (Refer to Figures 1-4)
Clean water, Freeze protection, hot water storage, Boiler and water heaters, cooling towers Copper Steel
Hot water, steam boilers, mildly corrosive solutions (in rinse tanks, spray washers) Incoloy Steel
Oils, Gases, Mildly corrosive liquids, stagnant or heavy oils, high temperature, low flow gas heating Steel Steel
Process water, soap and detergent solutions, Soluble cutting oils, demineralized or deionized water Stainless Steel Stainless Steel
Mildly corrosive solutions Stainless Steel Stainless Steel
Severe corrosive solutions, demineralized water Incoloy Stainless Steel
Light Oil, Medium Oil Steel Steel
Food Equipment Incoloy Stainless Steel


Features Benefits
  • Standard flange heaters: ½” to 42 inch pipe
  • Easy to install
  • 0.260”, 0.315”, 0.375”, 0.430” or 0.475”, 0.625” diameter
  • Easy to control
  • 150lb, 300lb, 600lbs or 900lbs forged steel flange
  • Easy to maintain
  • Steel, Incoloy®, inconel®, stainless steel, copper or titanium elements
  • Perfect for higher kilowatt output applications
  • Available explosion and/or moisture resistant terminal enclosures upon request  (NEMA 1, NEMA 4, NEMA 4x or NEMA 7.
  • Appropriate heater size provided for the application and fit


  • Available custom sizes, wattages, and materials upon request.
  • Designed and built for safety
  • Heating units are custom-designed to meet your specifications.
  • CSA, CSA U.S. & UL approved
