Steam Heating Module

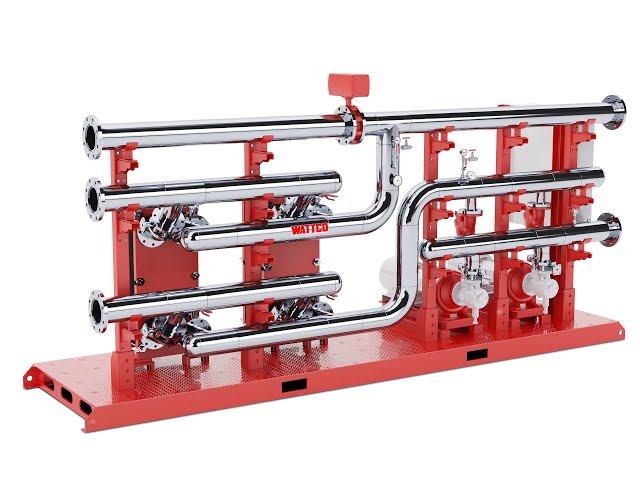

Steam Heating ModuleIntroduction to the Steam Heating Module

One of the crucial constitutive of heating, ventilation, and air conditioning is a Steam Heating Module, which is a dependable and easy-to-maintain alternative to the use of the traditional heating approaches commonly used by numerous industries. Industries have over the years been looking for the most feasible way of temperature control upgrade in their operations which spans manufacturing to the preparation of food. Such mechanisms as the Steam Heating Module ticks the list as the preferred method in this regard. This very beginning outlines the Steam Heating Module’s basic elements, which include, but are not limited to, its make, components, and the many diverse applications it endorses.

What is a Steam Heating Module?

A Steam Heating Module is a stand-alone system that consists of steam as a basic heat transfer medium in the heating process for a variety of processes and applications. It is a unit of machinery that is already put together, and it contains all the necessary things which comprise the steam heater packed into one unit. This model is developed to be a compact, easy-to-install, and highly efficient system, due to which it can solve its customers’ problems in some different productivity and energy-critical applications.

Key Components and Design

  • Steam Generator: A Steam Heating Module has the steam generator as the most vital component. Produced steam from water through a controlled heating process that acts as a steam generator. The steam generator runs at the correct pressures and temperatures needed by the customer’s application.
  • Heat Exchanger: The heat exchanger is a mechanism that makes the transfer of heat from the steam to the process fluid possible. This is usually a high-conductivity device that offers high rates of heat transfer and maximum energy savings.
  • Control System: The system is correctly equipped to monitor the leakage, pressure and temperature of steam by the use of high-performance automated control systems. These systems mostly involve sensors, programmable logic controllers (PLCs), and human-machine interface (HMI) devices, therefore, correctness and automation is achieved.
  • Piping and Valves: The module is equipped with a network of pipelines and valves that function to control the operation of the valve that will open the gas flow. This system is designed to guarantee the proper flow of steam and efficient condensate discharge, which means no problems such as water hammer and trap interference occur.
  • Condensate Return System: As a major part, the condensate return system gathers and returns steam condensation (water) to the steam generator for reuse. The system works constantly, thereby, the effectiveness of the steam generator is better as there is recycling water, and less fresh water is needed accordingly.
  • Safety Features: In steam heating systems, safety is the first and most important issue to address. The Steam Heating Module has pressure release valves, temperature sensors, and emergency shutoff switches integrated to secure safe operation under various conditions.

Applications and Versatility

The fact that the Steam Heating Module is so changing that besides being equally good for a parade of tasks it is also suitable for a vast set of other sectors. For example, the food and drink processing industry is a place where such equipment is used for tasks like pasteurization, cooking, and sterilization, where temperature control of the product and food safety are of utmost importance. In the pharmaceutical industry, it is utilized for heating processes which are needed with conditions of sterility and the presence of exact temperatures. The module besides this is also used for any building and in the systems, it is used for such and such activity as heating the space and for the industry they are used for processes such as drying, curing, and chemical reactions.

The proper and speedy insertion of the Steam Heating Module into the existing system or the solitary setup of it is made possible, thanks to the product’s compact design and modularity. In this way, it works as a magnet among the facilities that are willing to upgrade their heating systems without going through expensive changes and in other words, you also have the option of just setting it up as a lonely station. Additionally, the fast and easy installation made by the already pre-assembled module cuts down the setup time and thus, is a big advantage in the fast-tracking projects.

To sum up, the Steam Heating Module is a smart solution that is good to use for the heating. It functions via the power of steam in a very fail-safe, highly valuable and efficient way. Its integrated design, simplicity in installation, and ability to be used in various places related to the industry make it a valuable tool that helps in achieving the best temperatures and thus better processing efficiency.



Specification Description
Steam Pressure Range Capable of operating at pressures from 0 to 150 psi, suitable for low and high-pressure applications.
Temperature Control Range Supports a temperature range of 50°C to 250°C, allowing for precise heating across various processes.
Heat Exchanger Material Constructed from high-grade materials such as stainless steel or copper, ensuring efficient heat transfer and durability.
Flow Rate Capacity Handles flow rates from 10 to 5000 kg/hr, adaptable to diverse industrial heating requirements.
Power Supply Operates on standard electrical supplies ranging from 220V to 480V, 50/60 Hz, ensuring compatibility with different power grids.
Control System Equipped with advanced PLCs and HMIs for precise control and monitoring of steam parameters.
Condensate Return Efficiency Achieves up to 90% condensate return, enhancing water reuse and system efficiency.
Safety Features Includes pressure relief valves, temperature cut-offs, and emergency shutoff mechanisms for safe operation.
Modular Design Features a compact, skid-mounted design for easy installation and integration into existing systems.
Maintenance Accessibility Designed for easy access to all components, facilitating routine maintenance and minimizing downtime.


Application Description
Food and Beverage Processing Used for cooking, sterilization, and pasteurization, ensuring precise temperature control for product safety.
Pharmaceutical Industry Provides controlled heating for processes requiring sterile conditions and exact temperature settings.
HVAC Systems Utilized for space heating and hot water generation in commercial and residential buildings.
Chemical Processing Facilitates reactions and processes that require consistent and reliable heating.
Textile Industry Employed in dyeing and finishing processes where uniform heat is critical for product quality.
Paper and Pulp Industry Provides heat for drying paper and processing pulp, essential for maintaining product integrity.
Automotive Industry Used for heating in paint drying and other manufacturing processes requiring controlled temperatures.

Key Features and Benefits

Key Feature Benefit
Integrated Control Systems Ensures precise temperature and pressure control, enhancing process reliability and product quality.
Efficient Heat Transfer High-performance heat exchangers provide efficient and consistent heating, reducing energy consumption.
Compact and Modular Design Saves space and simplifies installation, making it ideal for facilities with limited room.
High Condensate Recovery Maximizes water reuse and efficiency, lowering operational costs and environmental impact.
Versatile Application Range Suitable for a wide range of industries and processes, offering flexibility and adaptability.
Robust Safety Features Ensures safe operation with built-in pressure relief valves and emergency shutdown mechanisms.
Ease of Maintenance

Easy access to components reduces maintenance time and costs, ensuring minimal disruption to operations.
