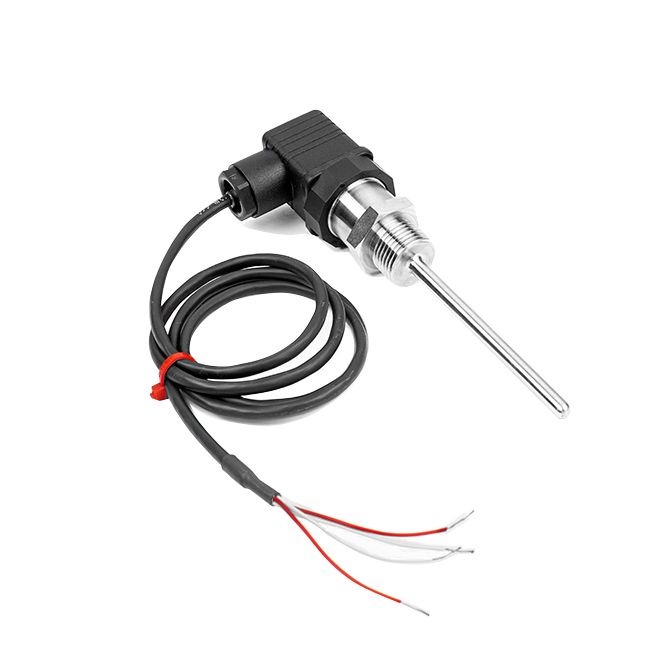

RTD Temperature Sensor

Understanding RTD Temperature Sensor Accuracy

The basis of RTD  temperature sensors is the fact that the resistance of the metal depends on its temperature. Platinum is commonly utilized in the production of RTDs due to stability and predictable nature of the resistance-to-temperature relationship. Several factors affect an RTD sensor’s accuracy:

Material and Design

An interesting feature to note is that the material selection for any given RTD is quite crucial. The Pt100 and Pt1000 platinum RTDs are renowned for their high accuracy and the stability of their resistification characteristics.

Pt1000 has the capability to show 1000 ohms at a given temperature and this can be established from the name Pt1000 as ‘Pt’ remains constant while the ‘100’ in Pt100 represents the 100 ohms at that particular temperature. Reproducibility is also dependent on other factors such as the purity of the material used to prepare RTD as well as the material of the platinum wire used.

Tolerance Classes

These sensors are classified according to standards all over the word like European Cene IEC 60751 where there are several tolerance class classifications including Class A, B and 1/3 DIN. Compared with Class B, Class A RTDs possess higher accuracy, the maximum allowable error of which is ±0. title: Effects of Temperature on Tg for polyW and PVP-PEG Blends 15°C at 0°C rather than ±0. It is at 3°C for Class B. It utilizes a more accurate system to measure the temperature and has a higher level of tightness.

Calibration and Standards

An important point of RTD sensor is the ability to calibrate its accuracy. The RTDs can be calibrated in comparison to a known thermal source and by frequently recalibrating the device, the accurate calibration values can be maintained consistently. The reliability and consistency of the obtained RTD measurements are ensured with unambiguous adherence to the international standard provisions that are in force, such as the directives of IEC.

Lead Wire Configuration

From the above notes, it is clear that the arrangement of lead wire has a great influence on the resistance temperature detector. Three- and four-wire modes are useful for calibration to counteract the effect of lead wire resistance, which may lead to measurement errors. These guitars require four wires to be as accurate as also they eliminate lead wire resistance impact.

Applications of RTD Temperature Sensor

RTD sensors are versatile due to their high levels of accuracy and reliability and are utilized in a broad range of industries. Here are some critical applications for RTDs:

Industrial Methods

In the occasion of operations and safety within industrial settings, accurate temperature measurement plays an important role. Most of the distillation columns, reactors and other critical equipment in the manufacturing, oil and gas and chemical processing industries require RTDs or reactor temperature monitors and controls for production and process control of the temperatures.

Air Conditioning Systems

HVAC stands for heating, ventilation, and air condition and it is important to keep temperature control accurate for comforts and efficiency. RTDs ensure that the temperature sensors on HVAC systems as well as the air handling units and thermostats give optimal performance.

Food & Drink Industry

Specifically, temperature regulation is important in the food and beverage industry because it provides assurance to its consumers that their meals or drinks are fresh and devoid of health risks. It uses the Retained Time and Temperature Displays (RTDs) to achieve the specified temperature conditions during cooking, pasteurisation, fermentation and refrigeration processes.

Pharmaceutical and Medical Uses

In the pharmaceutical & medical sectors, RTDs are employed in sterilization processes, analytical instruments and medical instruments for which the temperatures are measured with superiority. For instance, they ensure that systems for the storage of blood as well as incubators are of right temperature.

Generation of Power

Thermal control of the power plant environment is critical in preventing accidents and boosting production output. RTDs are used in applications such as measuring temperature of the boilers, turbines and other related mechanical systems to avoid overheating and for improving the efficiency levels.

Automobile and Aerospace Industries

The automobile and aerospace industries particularly employ RTDs as a means of measuring key systems such as engine or cabin heat. Their reliability ensures the safety and efficiency of these systems and serves as an indicator of high level of manufacturers’ quality.

Comparing RTD Sensors with Other Temperature Sensors

Despite the fact that RTD sensors are noted to have remarkable stability and accuracy, they should have an analysis made between them and the other types of temperature sensors.

Thermocouples

Another regular type of temperature sensor includes thermocouples popular for their fast response time and versatility of use in extensive temperature. However, thermocouples could also be affected by some issues such as thermoelectric effect; they could also provide less accurate readings as compared to RTDs. RTDs have the advantages of higher accuracy and more stable in the long term especially in the areas where the industrial application needs to measure the temperature with high accuracy.

Thermistors

Thermistors consist of ceramic and, similar to RTDs, have a modified resistance based on the temperature. They have a small range of temperature characteristics that are accurate and have high sensitivity as well. RTDs, nonetheless, can be advocated for operation in applications, which require higher accuracy, more consistent linearity and temperature range. Thermistors can also drift moe compared to RTDs over extended periods of time.

Thermal Imaging Devices

The missless types of thermal sensors include Infrared (IR) sensors which work through detection of infrared light emitted by an object to measure temperature from a distance. Alchemy’s PT100s are generally less accurate than RTDs but useful for measurements that do not require direct contact. Temperature sensors such as infrared might not be very reliable for precise temperature regulations because emissivity and external variables may change them.

Sensors for Semiconductors

Ultrasensitive semiconductor temperature sensors are easy to integrate into electrical circuits because they are small in size. Their versatility is seen through the multiple applications they can be used in and they offer high accuracy. However, RTDs are the preferred medium for applications that require high degree of accuracy because of the device’s greater stability and accuracy over a greater range of temperature.

Tips for Optimal RTD Temperature Sensor Performance

Think about the following advice to get the most out of RTD sensors:

Correct Setup

Therefore, only guarantee that RTDs are installed appropriately in order to reduce the number of times that one makes wrong measurements. It is also important that the sensor and the medium under study should be able to afford good thermal conduction so that heat loss is reduced as much as possible; further there must be proper insulation.

Continual Adjustment

RTD sensors are usually used for measuring temperature so the have to be calibrated from time to time to ensure their accuracy. Temperature can be scaled against standard reference temperatures to identify and rectify anomalous readings from the sensors.

Employ Proper Wiring

The use of 4-wire provides enhanced accuracy with temperature measurement since lead wire resistance errors are eliminated. In circumstances that are not feasible for this style, a three-conductor design can be a distinct improvement over a two-conductor arrangement.

Protection of the Environment

RTD sensors should also be protected form hostile environment circumstances that can affect the way the instrument performs. Sensor should be protected from moisture, chemical and mechanical damage, and this can only be achieved by enclosing it in the correct sheath and housing.

Avoid Mechanical Stress

Due to mechanical stress sensitivity, their resistance changes and decreases; this lowers the accuracy of use of RTDs. Ensure that the position of the sensor makes it free from any mechanical pressure of any form to function effectively and that its connections are safe to use.

Monitor and Replace Aging Sensors

RTDs may get spoiled in certain working condition, which can be quite harsh at times. Make sure that the sensors perform optimally with high precision, recommend checking on the efficiency of the sensors and replacing old ones.

Future of RTD Temperature Sensor

It is possible to conclude that RTD sensors have promising future, mainly due to the materials used for their construction and the possibility of integrating it in the production processes and digital technologies. Observe the following developments and trends:

Enhanced Materials

Currently, definitive research of new materials and combination of alloys will lead to enhanced stability, resolution and temperature variation RTD sensors. Other factors that can be added include the ability to augment the manufacturing techniques so as to reap corresponding benefits by delivering better performance and reliability to the RTD sensor.

Reduction in Size

Miniaturization is a phenomenon widely observed in the electronics, and it has repercussions for RTD sensors. RTD sensors are currently undergoing design improvements to have smaller dimensions suitable for compact applications.

Integration with IoT

Integrating RTD sensors into IoT offers new possibilities to process collected data, as well as monitor temperature in real time. Temperature regulation continues to become more of the intelligent sensors kind due to the increased and improving on the methods of the devices and systems kind.

Advanced Methods of Calibration

Many new technologies and calibration methods are on the way to enhance the advantages of calibrating the RTD sensors as far as precision and convenience are concerned. This is evidenced by the accurate reference standards or calibration systems and automated calibration.

Wider Adoption in Emerging Industries

Manufacturing contractors may encounter greater acceptance among developing sectors since settlements are often made to develop new projects, and their contributions to infrastructure are highly valued.

Every day, new arenas of use for thermometers emerge, or new sectors that require accurate and reliable measurement of temperature appear. RTD sensors are widely employed in biotechnology applications and precise manufacturing processes along with renewable energy segment.

Conclusion

When it comes to measuring temperature, RTD sensors are widely used across different industries for accurate readings. These are accurate, steady and dependable consequently they perform well when stability of temperature is important. If one realized the factors that affect RTD accuracy, versatility, and comparison with other temperature sensors, it will be easier to select the preferred one.

It is also significant for users to acknowledge that RTD sensors can only operate optima if the standards of installation and subsequent maintenance are observed. They do have a great prospect in the future since with further advancements and combined with the use of digitalization they can provide accurate results with even more uses.
