What is a Kettle-Type Heat Exchanger?

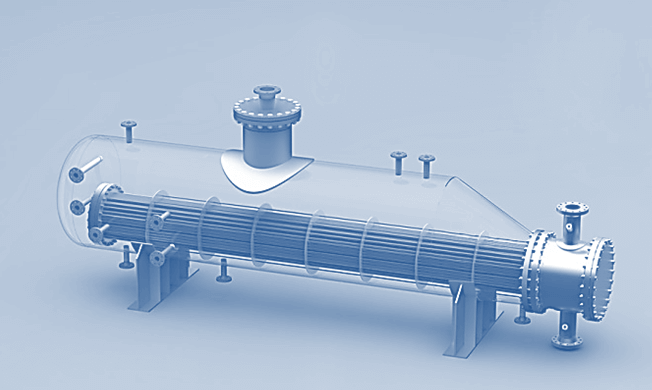

A kettle-type heat exchanger is a device designed to heat liquids or convert them into vapor. While it operates similarly to a shell and tube heat exchanger, its outer shell is uniquely shaped like a boiler or a boiling pot. Let’s explore its key features.

A kettle-type heat exchanger consists of a shell or vessel that contains a bundle of U-shaped or straight tubes. The liquid is introduced into the shell at the bottom and flows upward through the tube bundle, where it undergoes boiling. Above the tube bundle, the liquid and vapor separate, with the vapor rising overhead while the liquid flows over a weir.

The kettle heat exchanger is used in applications like distillation columns, evaporation processes, refining, chemical processing, pharmaceutical production, food and beverage, and waste treatment.

Heat Exchangers: A Case Study

How Does It Work?

In a kettle-type heat exchanger, one fluid which is the heating medium flows through the heat transfer surface, while the other fluid which is the process fluid occupies the large vessel. The heat is transferred from the hot fluid to the cold fluid by the conduction process through the heat transfer surfaces, raising the temperature of the process fluid or making it evaporate.

When the temperature of the process fluid reaches its boiling point, the liquid will evaporate and the vapor will accumulate at the top and the remaining liquid continues to be heated. The conical bottom collects the heavier liquid and the lighter vapor rises, enabling easy separation of the two phases.

Heating Process

Inlet: The hot fluid enters through an inlet at the top or side of the heat exchanger.

Heat Transfer: The hot fluid passes through the heat transfer surfaces, it passes the heat to the colder process fluid.

Phase Change: The process fluid starts heating and boils with rising vapor at the top of the heat exchanger.

Vapor Collection: The vapor will be collected at the top, while the heavier liquid flows down to the conical bottom.

Outlet: The hot vapor or liquid is directed out of the exchanger through designated outlets.

Benefits of Kettle-Type Heat Exchangers

1. High Efficiency in Heat Transfer

The kettle-type heat exchangers are built for maximum surface area contact between the heating or cooling medium and the process fluid. It offers efficient heat transfer which is required in processes of rapid heating or cooling.

Example: Chemical Processing in Petrochemical Plants

In petrochemical industries, kettle-type heat exchangers are used for processes like catalytic cracking. They provide efficient heat transfer, which is important for maintaining optimal reaction temperatures. This efficiency helps to maximize yield and minimize energy consumption.

2. Handling Large Volumes

The cylindrical and conical shape of the kettle exchanger allows it to accommodate large volumes of liquid. This capability is particularly beneficial in industries that process significant amounts of fluid, such as chemical manufacturing, food processing, and petroleum refining.

Example: Food Processing – Concentrated Juice Production

In the production of concentrated fruit juices, the kettle-type heat exchangers are used to handle large volumes of liquid, enabling water evaporation efficiently. This performance is important for high-quality concentrates while maintaining flavor and nutrients.

3. Effective Phase Change Management

The kettle-type heat exchangers support well when the phase changes occur, the evaporation and condensation. The design helps to manage the vapor and liquid phases effectively without excessive pressure drops.

Example: Distillation in Alcohol Production

In distilleries, the kettle-type heat exchangers are implemented in the distillation process to manage the vaporization and condensation of alcohol. It separates the various alcohol components by controlling the temperature and pressure and maintaining high purity and efficiency.

4. Simplicity and Easy Maintenance

The design of the kettle-type heat exchangers is straightforward and it is easy to maintain. It has fewer components, and can able to inspected easily leading to reduced downtime and operational costs.

Example: Pharmaceutical Manufacturing

Pharmaceutical companies use kettle-type heat exchangers for processes requiring strict cleanliness and reliability. Its straightforward design helps the maintenance teams to access and clean the equipment quickly reducing downtime and maintaining product integrity.

5. Versatility in Applications

The kettle-type heat exchangers are versatile and can be used in chemical processing, food & beverage, petrochemical, and pharmaceutical industries.

Example: Chemical Synthesis in Fertilizer Production

Kettle-type heat exchangers are used in fertilizer production, used in multiple stages, including cooling and heating reactions. Its versatility helps manufacturers adjust processes based on the specific chemical reactions, accommodating several production needs.

6. Energy Savings

Optimizing the heat transfer process, and reducing energy consumption, leads to lower operational costs. Thermal management is efficient so, the kettle-type heat exchangers require less energy to achieve the desired temperature.

Example: Textile Industry – Dyeing Process

In the textile dyeing industry, the kettle-type heat exchangers optimize the heating of dye baths. By transferring the heat efficiently, manufacturers can reach the desired temperature with less energy consumption, leading to cost savings while maintaining product quality.

7. No Risk of Fouling

The design of the kettle-type heat exchangers benefits by reducing the risk of fouling which is a common problem in all heat exchangers where the deposits accumulate on the heat transfer surfaces. This ability to handle fluids with varying properties minimizes the chance of fouling and increases the life of the equipment.

Example: Wastewater Treatment Plants

In wastewater treatment, kettle-type heat exchangers are used to recover heat from treated effluent. Its design minimizes fouling from sludge and other particles, provides consistent performance, and reduces maintenance costs.

8. Scalability

This exchanger can be scaled up or down based on the production needs. This scalability makes to cooperate with the fluctuating production levels or need to be adaptive in changing processes.

Example: Biotechnology – Fermentation Processes

In biotechnology, the kettle-type heat exchangers are utilized in the fermentation process frequently where scalability is necessary. When the production needs a change in scaling up for larger batches or scaling down for experimental processes, this heat exchanger can easily be adjusted to meet the altering demands.

This blog has provided a comprehensive overview of kettle-type heat exchangers, detailing their operation and benefits. These heat exchangers offer numerous advantages that make them invaluable in various industrial applications.

Their high efficiency, ability to handle large volumes, effectiveness in managing phase changes, and ease of maintenance make them a preferred choice for many manufacturers.

As industries continue to seek ways to improve efficiency and reduce operational costs, kettle-type heat exchangers will undoubtedly remain a critical component in the pursuit of optimal thermal management.
